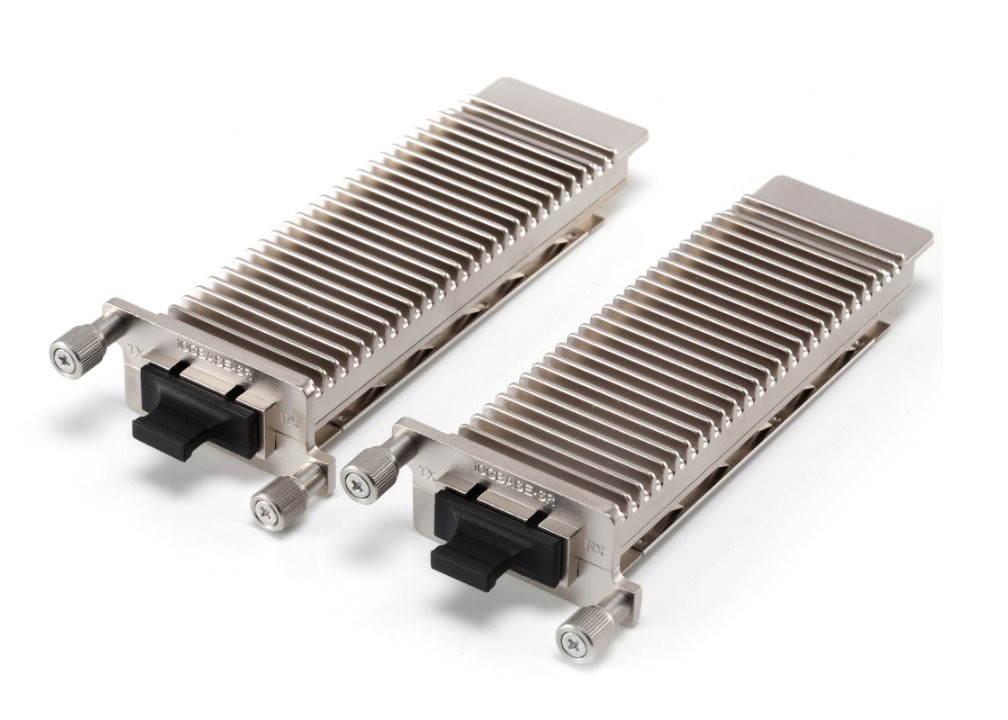

Multi-mode H3C Compatible 10G Xenpak Module With RoHS XENPAK-SX-MM850

Multi-mode H3C Compatible 10G Xenpak Module With RoHS XENPAK-SX-MM850

    • Multi-mode H3C Compatible 10G Xenpak Module With RoHS XENPAK-SX-MM850
    • Multi-mode H3C Compatible 10G Xenpak Module With RoHS XENPAK-SX-MM850
  • Multi-mode H3C Compatible 10G Xenpak Module With RoHS XENPAK-SX-MM850

    Thông tin chi tiết sản phẩm:

    Place of Origin: Shenzhen,China
    Hàng hiệu: Neuter, OEM
    Chứng nhận: CE/FCC/RoHS/TUV/UL
    Model Number: XENPAK-SX-MM850-A

    Thanh toán:

    Minimum Order Quantity: 1PCS
    Giá bán: Get Latest Price
    Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
    Delivery Time: Within 1-3 working days after PO confirmed
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 50,000pcs/Month
    Liên hệ với bây giờ
    Chi tiết sản phẩm
    Product Name: 10G Xenpak Module, Optical Transceiver Module Datarate: 10.3G
    Wavelength: 850nm Distance: 300M
    Application: 10GE Ethernet,10GE Core-routers,10GE Storage Ect. Form Factor: XENPAK



    Multi-mode H3C Compatible 10G Xenpak Module With RoHS XENPAK-SX-MM850





    H3C 10GBASE-SR XENPAK Module, Multi-Mode (850nm, 300m, LC)

    10GBASE XENPAK modules offers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications
    Supports 10GBASE Ethernet.Hot-swappable input/output device plugs into an Ethernet XENPAK port of a switch or router to link the port with the network.Provides flexibility of interface choice.Supports "pay-as-you-populate" model.Interoperable with respective 10-Gigabit X2, XFP and SFP+ modules on the same link




    Features

    • Compatible with XENPAK MSA Rev.3.0
    • Support of IEEE802.3ae up to 300m (OM3 MMF)
    • Power Consumption 1.8W (typ.)
    • Temperature Range 0 to 70°C
    • Vertical Cavity Surface Emitting Laser at 850nm (VCSEL)
    • Adaptable Power Supply (APS:+1.2V)
    • SC duplex connector
    • Hot pluggable 70-pin connector with XAUI electrical interface
    • Management and control via MDIO 2-wire interface
    • Compatible with RoHS




    Applications

    • 10GE Ethernet switches and routers
    • 10GE Core-routers
    • 10GE Storage
    • Other 10Gbps Ethernet Transmission System



    Specifications:



    P/N

    XENPAK-SX-MM850-A

    Datarate

    10G

    Wavelength

    850nm

    Distance

    300M

    Transmitter

    VESCEL

    Receiver

    PIN

    Media

    SMF

    DDM/DOM

    YES

    Connector

    SC

    Application

    Datacom 10G Ethernet

    Operating Temperature

    0℃~ +70℃

    Voltage Supply

    3.3V

    Certification

    CE/FCC/RoHS/TUV/UL

    Brand

    Neuter, OEM



    H3C 10G Xenpak



    10G XENPAK
    XENPAK-SX-MM850 XENPAK-SX-MM850-A 10GBASE-SR XENPAK  MMF, 850 nm, 300M
    XENPAK-LX-SM1310 XENPAK-LX-SM1310-A 10GBASE-LR XENPAK t SMF, 1310 nm,10km
    XENPAK-LH40-SM1550 XENPAK-LH40-SM1550-A 10GBASE-ER XENPAK  SMF, 1550 nm,40km





    Competitive advantage:


    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
    4. OEM/ODM  Customized label
    5. Keep stock,Fast delivery





    Multi-mode H3C Compatible 10G Xenpak Module With RoHS XENPAK-SX-MM850
