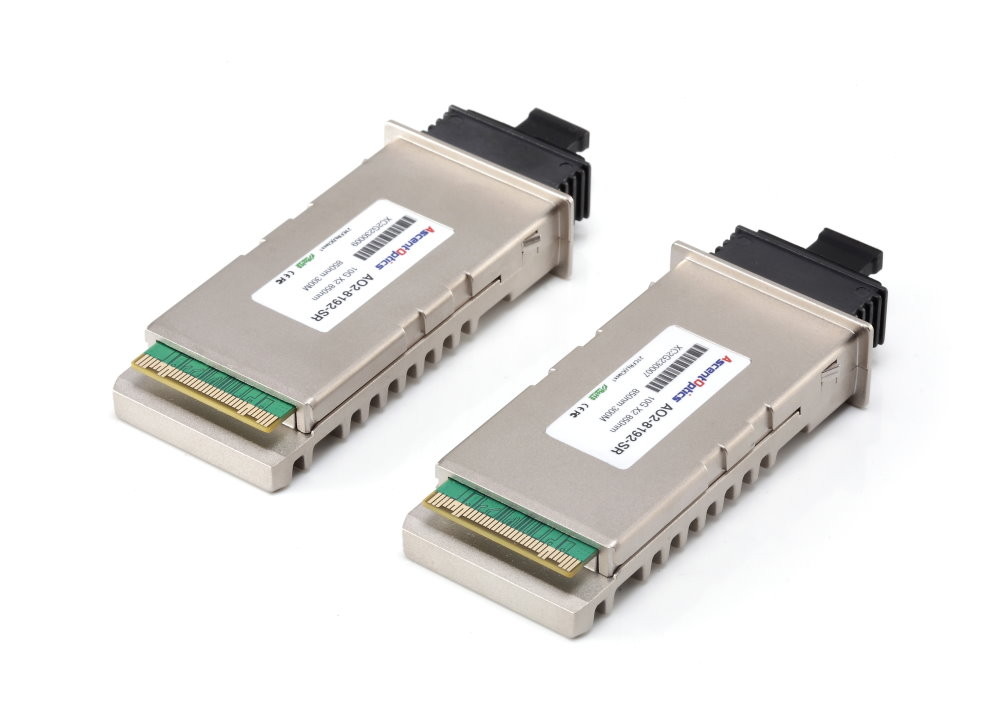

1590nm 1610nm CWDM SMF 10G X2 Module With SC Connector For 10 GE Routers

Thông tin chi tiết sản phẩm:

Place of Origin:	Shenzhen,China
Hàng hiệu:	AscentOptics/Neuter, OEM
Chứng nhận:	CE/FCC/RoHS/TUV/UL
Model Number:	AO2-CXXXX-R80

Thanh toán:

Minimum Order Quantity:	1PCS
Packaging Details:	10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time:	Within 1-3 working days after PO confirmed
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	50,000pcs/Month

Tiếp xúc

Chi tiết sản phẩm

Product Name:	10G X2 Module	Datarate:	10.3G
Wavelenth:	CWDM 1470 1490 1510 1530 1550 1570 1590 1610	Distance:	80KM
Application:	Datacom 10G Ethernet/10x FC	Connector:	SC
Điểm nổi bật:	10g module , cisco 10g x2

1590nm 1610nm CWDM SMF 10G X2 Module With SC Connector For 10 GE Routers

Specification:

P/N	AO2-CXXXX-R80
Datarate	10.3G
Wavelenth	CWDM 1470 1490 1510 1530 1550 1570 1590 1610
Distance	80KM
Transmitter	DFB
Receiver	APD
Media	SMF
DDM/DOM	YES
Connector	SC
Application	Datacom 10G Ethernet/10x FC
Operating Temperature	0℃~ +70℃
Voltage Supply	3.3V
Certification	CE/FCC/RoHS/TUV/UL
Brand	AscentOptics/Neuter, OEM

1530nm 1550nm 1570nm CWDM 10G X2 Module 80km for Gigabit Ethernet Switches

Description:

10GBASE X2 modules offer customers a wide variety of 10 Gigabit Ethernet connectivity options for data center, enterprise wiring closet, and service provider transport applications.Support 10GBASE Ethernet

Hot-swappable input/output device plugs into an Ethernet X2 port of a switch or router to link the port with the network .

Provides flexibility of interface choice.Supports "pay-as-you-populate" model

Has optical interoperability with respective 10GBASE Xenpak, 10GBASE XFP and 10GBASE SFP+ modules on the same link

Features

Wavelength selectable to ITU-T standards covering CWDM grid
Compatible with X2 MSA Rev2.0b
Support of IEEE 802.3ae 10GBASE-ER at 10.3125Gbps
Transmission Distance up to 80Km(SMF)
SC Receptacle CWDM Cooled EA Laser and APD photodiode
SC Duplex Optical Connector
Hot Pluggable 70-PIN Connector with XAUI Electrical Interface
Management and control via MDIO 2-wire interface
Power Supply : +5V, +3.3V, APS(+1.2V)
Diagnostic Optics Monitoring
Temperature Range: -5~ 70 °C
ROHS Compatible

Applications

10GE Ethernet switches and routers
10GE Core-routers
10GE Storage
Other 10Gbps Ethernet Transmission System

AscentOptics 10G X2 transceiver

P/N	Data Rate	Distance	Wavelength	LD	PD	DDM	Media
AO2-8192-SR	10.3	300M	850nm	VESCEL	PIN	Y	MM
AO2-3192-LR	10.3	10KM	1310nm	DFB	PIN	Y	SM
AO2-3192-LW	9.95	10KM	1310nm	DFB	PIN	Y	SM
AO2-3192-LRM	10.3	220M	1310nm	DFB	PIN	Y	MM
AO2-5192-ER	10.3	40KM	1550nm	DFB	PIN	Y	SM
AO2-5192-ZR	10.3	80KM	1550nm	DFB	APD	Y	SM
AO2-CXXXX-R40	10.3	40KM	CWDM XXXXnm	DFB	PIN	Y	SM
AO2-CXXXX-R80	10.3	80KM	CWDM XXXXnm	DFB	APD	Y	SM
AO2-DXX-R40	10.3	40KM	DWDM CHXX	DFB	PIN	Y	SM
AO2-DXX-R80	10.3	80KM	DWDM CHXX	DFB	APD	Y	SM

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
