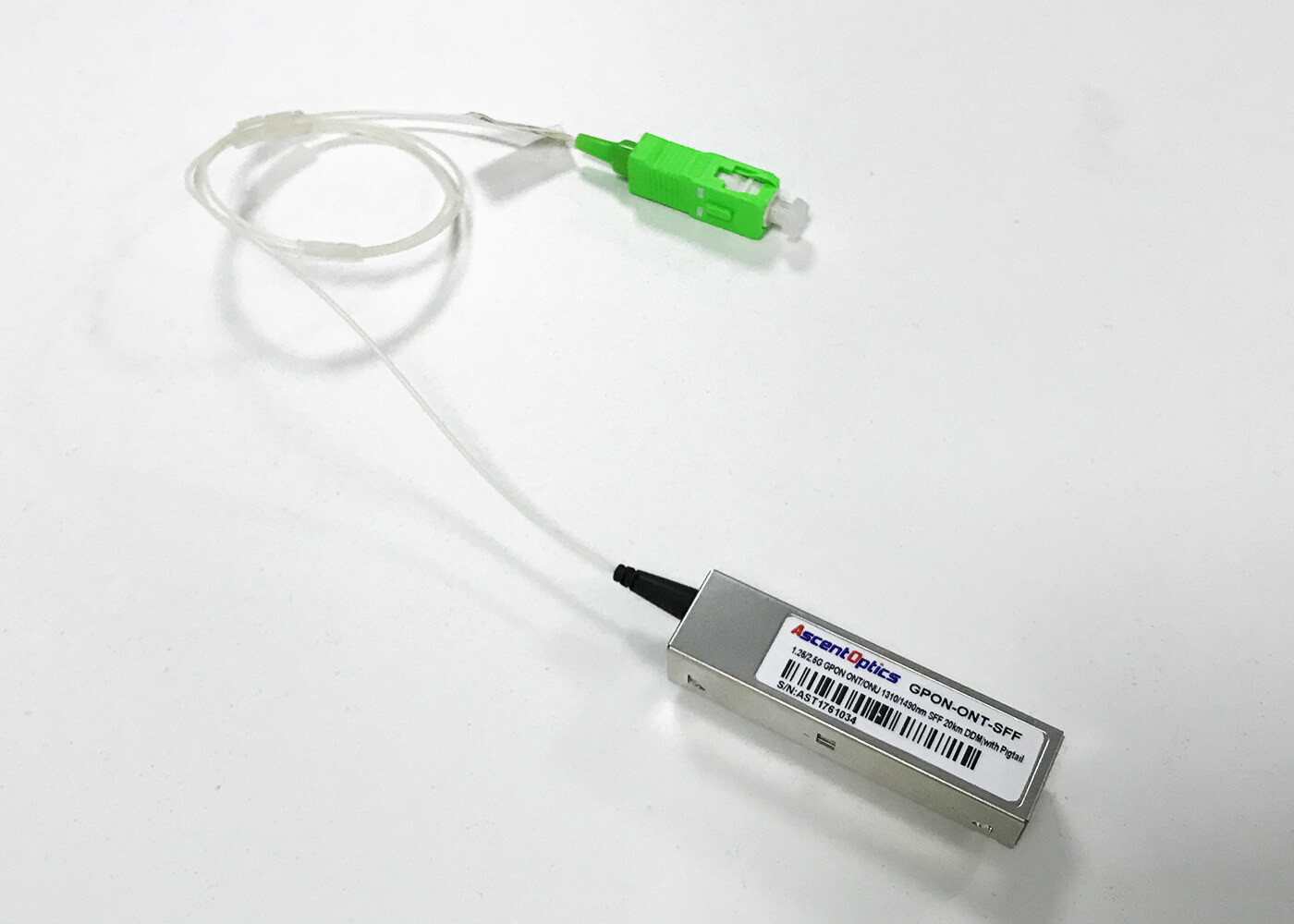

GPON ONT SFF optical transceiver module TX 1.25G / RX 2.5G 20KM 1310nm 1490nm

GPON ONT SFF optical transceiver module TX 1.25G / RX 2.5G 20KM 1310nm 1490nm

  • GPON ONT SFF optical transceiver module TX 1.25G / RX 2.5G 20KM  1310nm 1490nm
  • GPON ONT SFF optical transceiver module TX 1.25G / RX 2.5G 20KM  1310nm 1490nm
GPON ONT SFF optical transceiver module TX 1.25G / RX 2.5G 20KM  1310nm 1490nm
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen,China
Hàng hiệu: AscentOptics/Neuter, OEM
Chứng nhận: CE/FCC/RoHS/TUV/UL
Model Number: GPON-ONT-SFF-I
Thanh toán:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Tiếp xúc
Chi tiết sản phẩm
P/N: GPON-ONT-SFF-I Datarate: TX 1.25G/RX 2.5G
Wavelength: Tx1310nm / Rx1490nm Distance: 20KM
Media: SMF Connector: SC
Điểm nổi bật:

fiber optic sfp module

,

sfp gigabit ethernet



GPON ONT SFF optical transceiver module TX 1.25G / RX 2.5G 20KM 1310nm 1490nm



Specification:





P/N GPON-ONT-SFF-I
Datarate TX 1.25G/RX 2.5G
Wavelenth Tx1310nm / Rx1490nm
Distance 20KM
Transmitter DFB
Receiver APD
Media SMF
Connector SC
Application Gigabit Ethernet Passive Optical Networks (GPON)/FTTx
Operating Temperature -40℃~ +85℃
Voltage Supply 3.3V
Certification CE/FCC/RoHS/TUV/UL
Brand AscentOptics/Neuter, OEM





GPON ONU Optical Transceiver SFF Module TX 1.25G/RX 2.5G 20km



Description:



The GPON ONT Transceiver is designed for Gigabit-capable Passive Optical Network(GPON)transmission. The module incorporates 1310nm burst-mode transmitter and 1490nm continuous-mode receiver.

The transmitter section uses a 1310nm DFB laser and an integrated BM laser driver which designed to perform very small burst enable/disable delay time. The laser driver also includes digital APC and temperature

compensation circuit, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging.

The receiver section uses an integrated 1490nm APD photodiode and preamplifier mounted together. It has the function that indicates receiver signal-detected status (active high).

An integrated WDM coupler can separate 1490nm input light and 1310nm output light.

The metallic package guarantees excellent EMI and EMC characteristics, which totally comply with international relevant standards.







Applications



  • Optical transceiver for Gigabit-capable Passive Optical Networks (GPON) ONU side





Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
