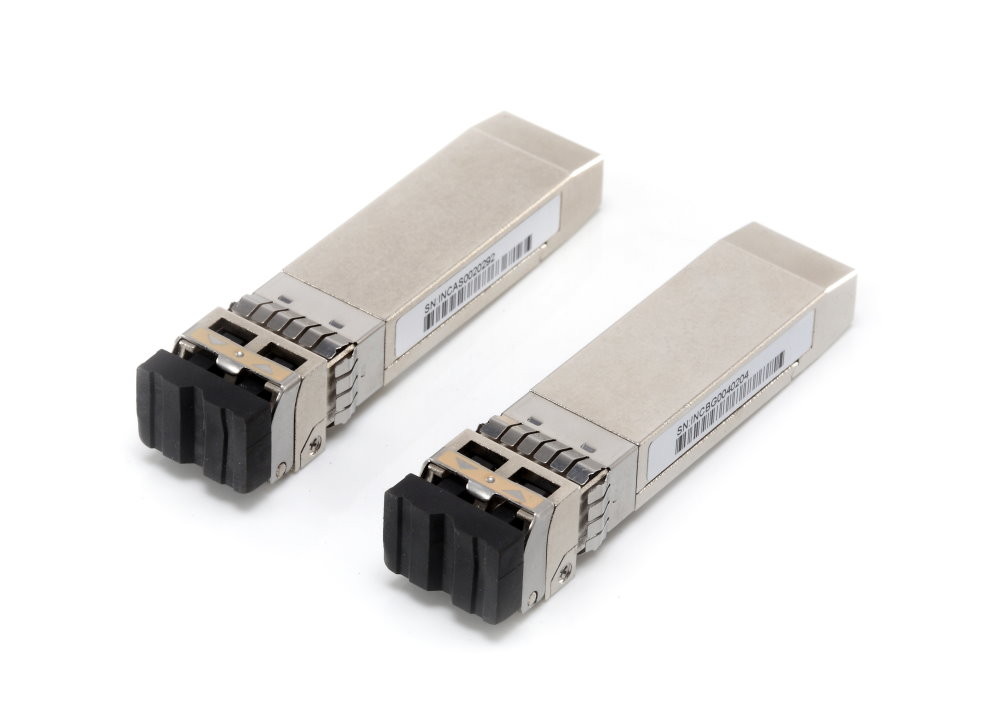

Extreme Networks SFP + Optical Transceiver Module For SMF 10km 10302

Extreme Networks SFP + Optical Transceiver Module For SMF 10km 10302

  • Extreme Networks SFP + Optical Transceiver Module For SMF 10km 10302
  • Extreme Networks SFP + Optical Transceiver Module For SMF 10km 10302
Extreme Networks SFP + Optical Transceiver Module For SMF 10km 10302
Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen,China
Hàng hiệu: Neuter, OEM
Chứng nhận: CE/FCC/RoHS/TUV/UL
Model Number: 10302-A
Thanh toán:
Minimum Order Quantity: 1PCS
Giá bán: Get Latest Price
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Tiếp xúc
Chi tiết sản phẩm
Product Name: SFP+ Optical Transceiver Datarate: 10.3G/ps
Distance: 10KM Wavelength: 1310nm
Application: 10G Ethernet/10G FC DDM/DOM: YES
Điểm nổi bật:

sfp fiber optic transceiver

,

sfp transceiver module



Extreme Networks SFP+ Optical Transceiver Module For SMF 10km 10302



Specifications:



P/N

10302-A

Datarate

10.3G/ps

Distance

10KM

Wavelength

1310nm

Transmitter

DFB

Receiver

PIN

Media

SMF

DDM/DOM

YES

Connector

LC

Application

10G Ethernet/10G FC

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

Neuter, OEM



Extreme Networks SFP+ Transceiver Module, 10 Gigabit Ethernet LR SFP+ module, 1310nm wavelength, Single,mode Fiber (SMF), 10km reach, LC connector

Hot-swappable input/output device that plugs into an Ethernet SFP+ port of a switch. Provides flexibility of interface choice .Supports "pay-as-you-populate" model. Supports digital optical monitoring capability

Optical interoperability with 10GBASE XENPAK, 10GBASE X2, and 10GBASE XFP interfaces on the same link



Features:
  • 10Gb/s serial optical interface compliant to 802.3ae 10GBASE-LR
  • Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+”
  • 1310nm DFB  transmitter, PIN photo-detector
  • 2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface for optical transceivers
  • operating case temperature: 0 to 70 °C
  • ll-metal housing for superior EMI performance
  • Low power consumption
  • Advanced firmware allow customer system encryption information to be stored in transceiver
  • Cost effective SFP+ solution, enables higher port densities and greater bandwidth
  • RoHS compliant



Applications

  • High-speed storage area networks
  • Computer cluster cross-connect
  • Custom high-speed data pipes





Extreme 10G SFP+

10301 10301-A 10GBASE-SR SFP+ 850nm 300m Optical Transceiver
10302 10302-A 10GBASE-LR SFP+ 1310nm 10km Optical Transceiver
10303 10303-A 10GBASE-LRM  SFP+ 1310nm 220m Optical Transceiver
10309 10309-A 10GBASE-ER SFP+ 1550nm 40km Optical Transceiver




Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
