40G SR4 MTP / MPO QSFP + Optical Transceiver 850nm 100m For Telecom Connections

40G SR4 MTP / MPO QSFP + Optical Transceiver 850nm 100m For Telecom Connections
40G SR4 MTP / MPO QSFP + Optical Transceiver 850nm 100m For Telecom Connections 40G SR4 MTP / MPO QSFP + Optical Transceiver 850nm 100m For Telecom Connections 40G SR4 MTP / MPO QSFP + Optical Transceiver 850nm 100m For Telecom Connections 40G SR4 MTP / MPO QSFP + Optical Transceiver 850nm 100m For Telecom Connections 40G SR4 MTP / MPO QSFP + Optical Transceiver 850nm 100m For Telecom Connections

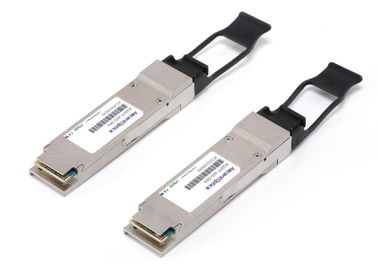

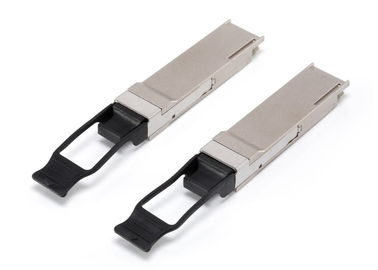

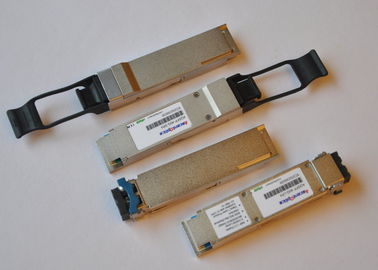

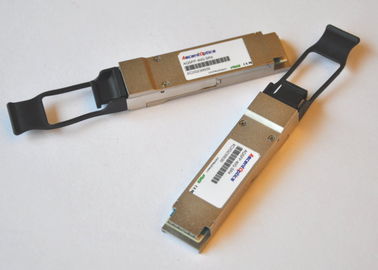

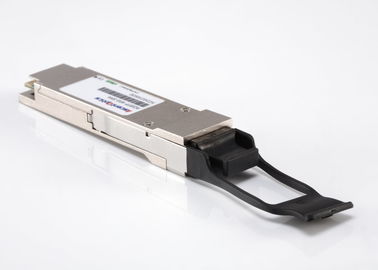

Hình ảnh lớn :  40G SR4 MTP / MPO QSFP + Optical Transceiver 850nm 100m For Telecom Connections

Thông tin chi tiết sản phẩm:
Place of Origin: Shenzhen,China
Hàng hiệu: AscentOptics/Neuter, OEM
Chứng nhận: CE/FCC/RoHS/TUV/UL
Model Number: 40G-QSFP-SR4-A
Thanh toán:
Minimum Order Quantity: 1PCS
Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time: Within 1-3 working days after PO confirmed
Payment Terms: T/T, Western Union, L/C
Supply Ability: 50,000pcs/Month
Chi tiết sản phẩm
Product name: QSFP + Optical Transceiver Datarate: 40G/ps
Distance: 100M Wavelenth: 850nm
Application: 40G Ethernet/ 40G Infiniband DDM/DOM: YES
Điểm nổi bật:

cisco sfp transceivers

,

fiber optic transceiver


40G SR4 MTP / MPO QSFP+ Optical Transceiver 850nm 100m For Telecom Connections




Specification:



P/N

AQSFP-40G-SR4

Datarate

40G/ps

Distance

100M

Wavelenth

850nm

Media

MMF

DDM/DOM

YES

Connector

MTP/MPO

Application

40G Ethernet/ 40G Infiniband

Operating Temperature

0℃~ +70℃

Voltage Supply

3.3V

Certification

CE/FCC/RoHS/TUV/UL

Brand

AscentOptics/Neuter, OEM


40G QSFP+ SR4 850nm 100m Multi-mode 40G Ethernet/ Infiniband QDR, DDR and SDR/Data Center



Description:

The Quad Small Form-factor Pluggable ( QSFP or QSFP+) is a compact, hot-pluggable transceiver used for data communications applications. It interfaces a network device motherboard (for a switch, router, media converter or similar device) to a fiber optic cable. It is a industry format jointly developed and supported by many network component vendors. QSFP+ transceivers are designed to support Serial Attached SCSI,40G Ethernet, 20G/40G Infiniband, and other communications standards.The QSFP Transceiver include 40GBASE-SR4 and 40GBASE-LR4 for different applications.

The AscentOptics 40GBASE QSFP+ (Quad Small Form-Factor Pluggable Plus) modules offer customers a wide variety of high-density 40 Gigabit Ethernet connectivity options for data center, high-performance computing networks, enterprise core and distribution layers, and service provider transport applications.


Features
  • 4 independent full-duplex channels
  • Up to 11.2Gbps data rate per channel
  • MTP/MPO optical connector
  • QSFP MSA compliant
  • Digital diagnostic capabilities
  • Capable of over 100m  transmission on OM3 multi-mode ribbon fiber
  • CML compatible electrical I/O
  • Single +3.3V power supply
  • Operating case temperature: 0~70C
  • XLPPI  electric interface (with 1.5W Max power)
  • RoHS-6 compliant

Applications
  • 40G Ethernet
  • Infiniband interconnects
  • 40G Telecom connections
  • Data Centers



AscentOptics 40G QSFP+

Item No Data Rate Distance Wavelength Connector Media
AQSFP-40G-SR4 40G/ps 100M 850nm MTP/MPO MM
AQSFP-40G-CSR4 40G/ps 300M 850nm MTP/MPO MM
AQSFP-40G-IR4 40G/ps 2km 4 CWDM LC SM
AQSFP-40G-LR4 40G/ps 10km 4 CWDM LC SM




Competitive advantage:


1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM  Customized label
5. Keep stock,Fast delivery
