OEM Gigabit Ethernet SFP Fiber Optical Transceiver SFP 10051H

Thông tin chi tiết sản phẩm:

Place of Origin:	Shenzhen,China
Hàng hiệu:	Neuter, OEM
Chứng nhận:	CE/FCC/RoHS/TUV/UL
Model Number:	10051H-A

Thanh toán:

Minimum Order Quantity:	1PCS
Giá bán:	Get Latest Price
Packaging Details:	10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time:	Within 1-3 working days after PO confirmed
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	50,000pcs/Month

Tiếp xúc

Chi tiết sản phẩm

Product Name:	SFP Optical Transceiver	Datarate:	1.25Gb/s
Wavelength:	850nm	Transmitter:	VCSEL
Connector:	LC	Application:	Gigabit Ethernet
Điểm nổi bật:	sfp transceiver module , fiber optic sfp module

OEM Gigabit Ethernet SFP Fiber Optical Transceiver SFP 10051H

Features

● Data rate 155M/622M/1.25G/2.5G

● 850nm/1310nm/1550nm laser diode transmitter

● PIN/APD photodiode receiver

● SFP MSA package with duplex LC connector

● +3.3V single power supply

● Digital Diagnostic Monitor Interface

● Very low EMI and excellent ESD protection

● RoHS compliant products available

● Distance from 100m to 120km

● CWDM/DWDM option

Extreme Networks SFP Transceiver Module, 1000BASE-SX, 850nm Wavelength, LC Connector,up to 550 meter reach Industrial temperature.

The AscentOptics Small Form-Factor Pluggable (SFP) Gigabit Interface Converter is a hot-swappable input/output device that plugs into a Gigabit Ethernet port or slot, linking the port with the network. SFPs can be used and interchanged on a wide variety of switches and routers, can be intermixed in combinations of 1000BASE-T, 1000BASE-SX, 1000BASE-LX/LH, 1000BASE-EX, 1000BASE-ZX, or 1000BASE-BX10-D/U on a port-by-port basis.

Applications

Gigabit Ethernet/Fast Ethenet
Fiber Channel
SDH/SONET/ATM
Switch to Switch interface
Router/Server interface
Other optical transmission systems

Specifications:

P/N	10051H-A
Datarate	1.25Gb/s
Distance	550M
Wavelength	850nm
Transmitter	VCSEL
Receiver	PIN
Media	MMF
DDM/DOM	YES
Connector	LC
Application	Gigabit Ethernet
Operating Temperature	-40℃~ +85℃
Voltage Supply	3.3V
Certification	CE/FCC/RoHS/TUV/UL
Brand	Neuter, OEM

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery

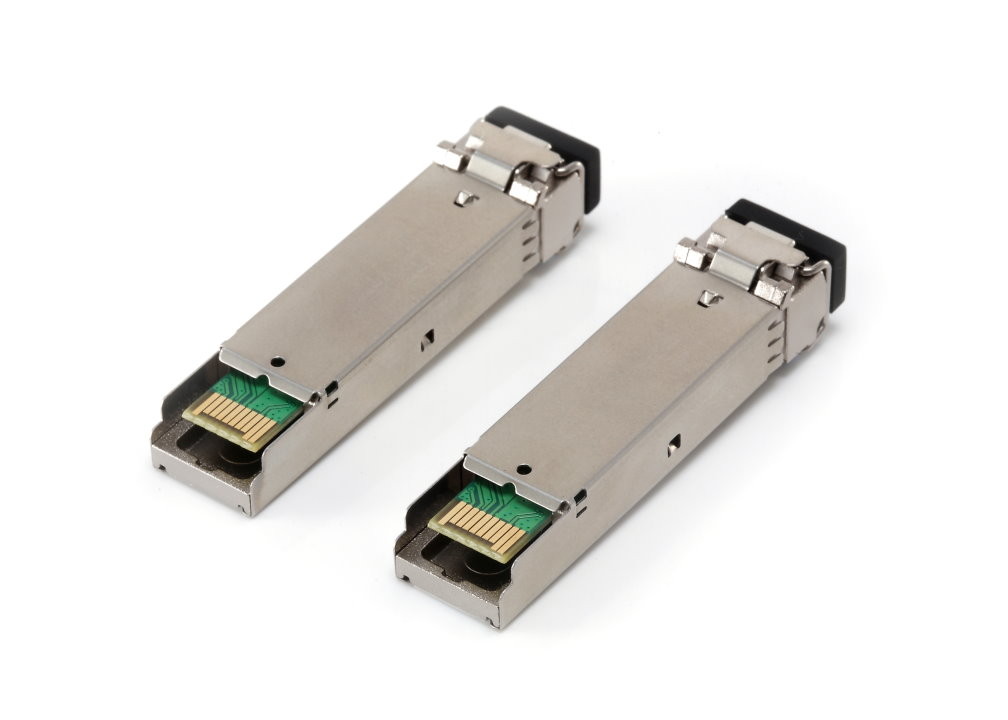

OEM Gigabit Ethernet SFP Fiber Optical Transceiver SFP 10051H 0
