3G Pin SMPTE Video SFP

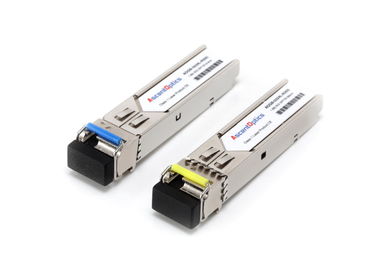

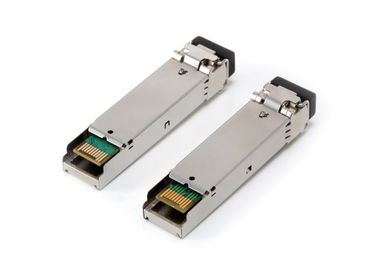

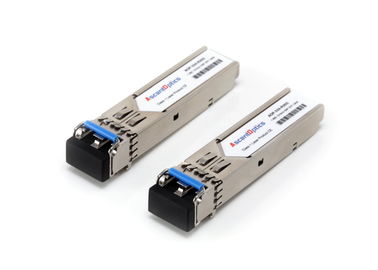

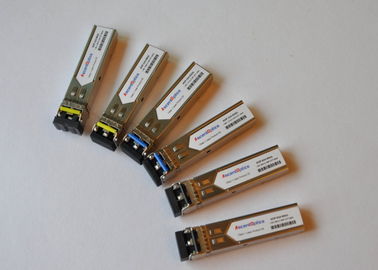

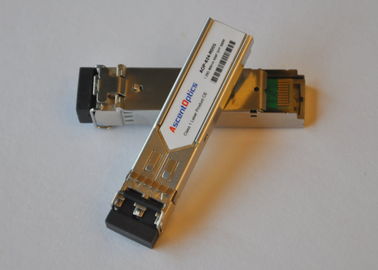

Hình ảnh lớn : 3G Pin SMPTE Video SFP

Thông tin chi tiết sản phẩm:

Place of Origin:	Shenzhen,China
Hàng hiệu:	AscentOptics/Neuter, OEM
Chứng nhận:	CE,FCC,RoHS
Model Number:	AVPT3G1301-SDI10

Thanh toán:

Minimum Order Quantity:	1PCS
Giá bán:	Get Latest Price
Packaging Details:	10 or 20PCS /Plastic tray, 1PC/Gift box
Delivery Time:	Within 1-3 working days after PO confirmed
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	50,000pcs/Month

Tiếp xúc

Chi tiết sản phẩm

Product Name:	Video SFP Transceiver	Voltage Supply:	3.3V
Datarate:	50-3000 (Mb/s)	Application:	3G Video System
Connector:	LC	Brand:	AscentOptics/Neuter
Điểm nổi bật:	digital video transmitter , 3g video transmitter

50 - 3000 Mb/s SMPTE Video SFP 3G 1310nm FP Single Channel Transmiter

Specification:

P/N	AVPT3G1301-SDI10
Datarate	50~3000 (Mb/s)
Number of optical input	N/A
Number of optical output	1
Typical powervalue (dbm)	-3~-10
Sensitivity(dbm)	N/A
Estimated reach @3Gb/s (km)	10Km@1.5Gb/s
Connector	LC
Application	3G Video System
Operating Temperature	0℃~ +70℃
Voltage Supply	3.3V
Certification	CE/FCC/RoHS/TUV/UL
Brand	AscentOptics/Neuter, OEM
Standards	SMPTE 424M 3 Gbps SDI SMPTE 292M HD-SDI/ SMPTE 348M HD-SDTI SMPTE 259M SD-SDI/ SMPTE 305M SD-SDTI

SMPTE video SFP 3G 1310nm FP single Channel Transmiter 3G/HD-SDI/SD-SDI

Description:

1. SMPTE 424M/297M compliant

2. Robust Error free transmission of signals from 50Mbps to 3.0Gbps

3. Supports video pathological patterns for 3G/HD-SDI/SD-SDI

4. PIN defination is compatible with MSA

5. SFP Package.Hot-pluggable

6. Metal enclosure for lower EMI

7. +3.3V single power supply.

8. Digital diagnostics and control via I²C interface, including:

1)Monitoring laser bias current, average output power, supply voltage and temperature

2)Alarm reporting when transmitter is at fault

3)Module ID polling

9. Compliant ROHS and lead free

Applications

SMPTE 297-2006 Compliant
Electrical-to-Optical Interfaces
3G Video System

Competitive advantage:

1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
